Description

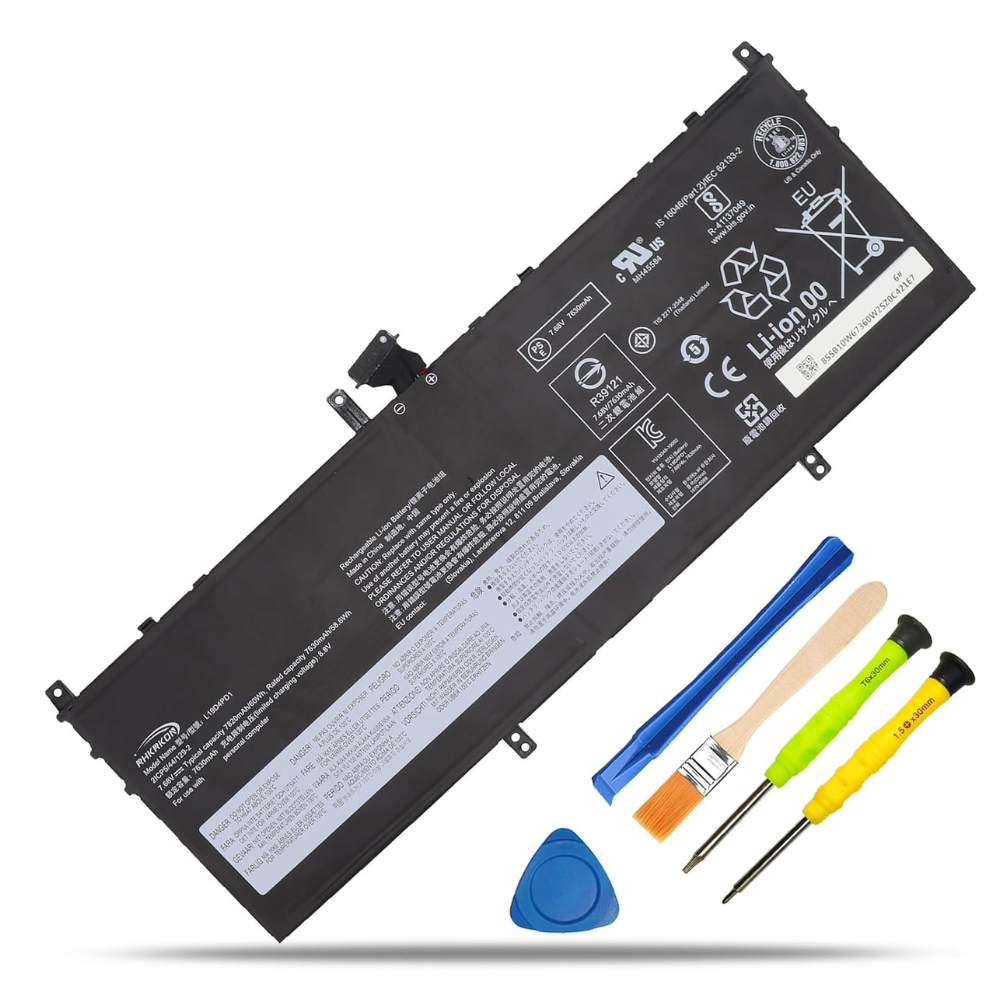

Lenovo L19D4PD1 Battery  Specifications

1. General Information

• Model: Lenovo Laptop Battery Pack

• Part Number: L19D4PD1 (Compatible with: L19M4PD1, L19L4PD1)

• Compatible Series: Yoga C640, Yoga 6 13″ (2020-2021 models)

• Type: Rechargeable Lithium Polymer

• Condition: Brand new

2. Electrical Specifications

• Voltage: 7.68 V

• Capacity: 60 Wh

• Energy: 60 watt-hours

• Current: 7.81 Ah (7810 mAh)

• Cycle Count: Designed for up to 500 complete charge cycles

3. Physical Specifications

• Weight: 0.280 kg (0.62 lbs)

• Dimensions: ~210.0 x 100.0 x 6.0 mm (Wide, thin form factor)

• Connector: Proprietary 4-pin connector

• Form Factor: 2-cell series configuration (low voltage, high capacity)

4. Performance & Features

• Chemistry: Lithium Polymer (LiPo)

• Management: Integrated Smart Battery with SMBus communication

• Charging: Standard 45W/65W USB-C charging

• Battery Life: Up to 15 hours (MM14) for Yoga 6 models

5. Compatibility Details

• Primary Models: Yoga C640-13IML (LTE), IdeaPad Yoga 6-13ARE05, Yoga 6-13ALC6

• Alternative Part #: 5B10U65274, 5B10U65275, 5B10W67329, 5B10W67385

• Note: Specific to the 13″ 2-in-1 convertible models with AMD Ryzen (ARE05/ALC6) or Intel 10th Gen (IML) processors.
